- Place of Origin: JINAN
- Brand Name: siernuo
- Model Number: 4XB

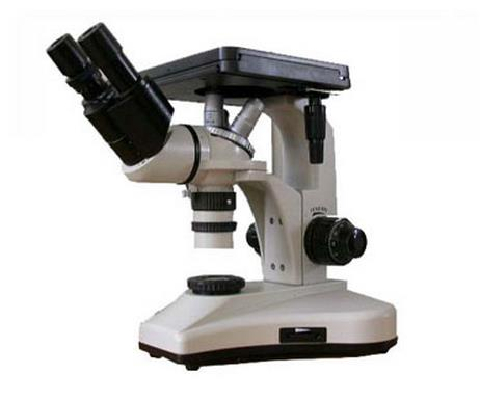

Characteristics and application of 4XB metallographic microscope:
4XB type binocular inverted microscope is used to identify and analyze the structure of various metals and alloys. The microscope imaging is clear, the field of vision is broad, the whole design conforms to the man-machine function, is suitable for the long time operation. The quality of castings can be widely used in the factory or laboratory. The inspection of raw materials or the analysis of the microstructure of the material after treatment
The instrument is inverted microscope was observed due to the sample surface and table surface coincide, it has nothing to do with the height, convenient operation, the instrument has the advantages of compact structure, beautiful appearance, instrument base supporting larger, curved arm is strong, the center of gravity low it is stable and reliable, and the support is 45 because of the eyepiece the degree of tilt, the observation of comfort.
Two, 4XB metallographic microscope technology parameters:
The 1 eye
category
Amplification factor
Field diameter (mm)
Flat field eyepiece
10X
Eighteen
2 objective lens
category
Amplification factor
numerical aperture
system
Working distance mm
Plan Achromat
10X
Zero point two five
dry
Seven point three one
Plan Achromat
40X
Zero point six five
dry
Zero point six six
Plan Achromat
100X
One point two five
oil
Zero point three seven
3 total optical amplification: 100X-1000X
4 mechanical cylinder length: 160 mm
5 coarse micro focusing mechanism: focus range: 7 mm scale value: 0.002 mm
6 coarse moving focus range: 7 mm
7 mechanical working table: 75*50 mm
8 light bulbs: 12W 6V bromine tungsten lamp
9 load objects (diameter): 10, 20, 42
10 instrument weight: 5 kg
11 packing box size: 360*246*360 mm
Three, complete sets of equipment
1, microscope main body: 1
2, only 2 10X eyepiece
3, objective 10X, 40X (flat field), 100 (oil) 1
4, binocular tube 1
5, load table 1 pieces of pressure
6 slides, Phi 10, Phi 20, Phi 42 1
7, color (yellow, green, gray and frosted glass) 1
8, Chinese fir oil 1 bottles
9, light bulb (bromine tungsten lamp) (spare) 2
10, 1 fuse
