First, the main use:

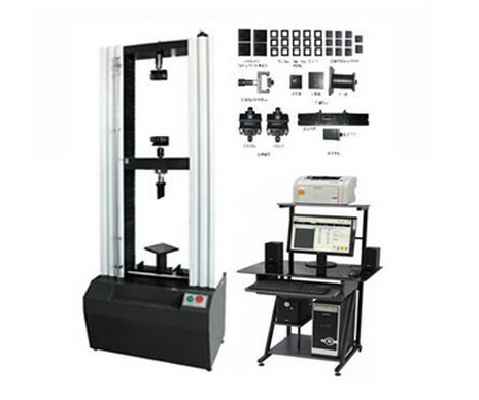

BWW-20 type microcomputer control insulation material testing machine is designed for composite insulation mortar system, polystyrene board exterior wall insulation system, rigid polyurethane foam composite board exterior wall insulation system and other external wall insulation system and roof insulation materials of various physical and chemical performance test research.

Two, this machine applicable standard:

JC/T992-2006 "expansion polyethylene adhesive for wall insulation"

JC/T993-2006 "exterior insulation mortar" with the expansion of polyethylene plate

JC/T547-2005 "ceramic tile adhesive"

JG149-2003 "expansion of polystyrene board thin plastering exterior insulation system"

JC890-2001 "autoclaved aerated concrete with mortar and plaster mortar"

JC/T907-2002 "concrete interface treatment agent"

"JG158-2004 powder polystyrene particles exterior insulation system"

DBJ01-38-2002 "external wall thermal insulation construction technical specification for polymer cement mortar adhesive"

DBJ/T01-50-2002 "technical specification for exterior wall insulation construction of flexible waterproof putty"

Three, the main technical indicators:

1, the maximum test force: 20kN

2, measuring range: 100% - 2% of the maximum test force

3, testing machine accuracy level: 1

4, the test force accuracy: better than the value of 1%

5, beam displacement measurement: the resolution is 0.01mm

6, deformation accuracy: better than 1%

7, speed range: 0.01-300mm/min

8, the test space: 600mm

9, host form: portal frame structure

10, host size: 600 x 1850 x 840

11, weight: about 650Kg

12, working environment: room temperature to 45 degrees, humidity 20% ~ 80%

Four, software introduction

1, Taiwan imported AC servo motor, stable performance, reliable, with over current, over voltage, over speed, overload and other protective devices. Speed ratio of up to 1:5000.

2, electrical control line with reference to international standards, in line with the national testing machine electrical standards, strong anti-interference ability, to ensure the stability of the controller, the accuracy of the experimental data.

3, automatic transmission: according to the load size automatically switch to the appropriate range, to ensure the accuracy of measurement data; to achieve a real sense of the physical zero, gain adjustmenttest force measurement, automatic zero calibration, and save, no part of any simulation of regulation, control of highly integrated circuits

4, save conditions: control datasample test conditions can be made into modules, convenient batch test;

5, automatic transmission: the speed of the moving beam in the test process can be automatically changed according to the preset program, but also can be changed manually;

6, automatic calibration: the system can automatically realize the calibration accuracy of the calibration;

7, dynamic preservation: the end of the experiment, the test data and curves automatically save;

8, the process of realization: test process, measurement, display and analysis are completed by the computer;

9, batch test: the samples on the same parameters, one set after distal;

10, test software: Chinese WINDOWS interface, menu tips, mouse operation;

11, display the way: data and curves with the dynamic display of the test process;

12, curve traversal: after the completion of the test, the curve can be re analyzed, with the mouse can be found in the curve of the corresponding test data;

13, curve selection: according to the need to select the stress - strain, force - displacement, force - time, displacement - time curve for display and print;

14, test report: according to the user requirements of the format and print the report; with the network interface, data transmission, storage, printing and printing network transmission, can be connected with the internal LAN or Internet.

15, limit protection: with programmable and mechanical two level limit protection;

16, automatic shutdown: after the test samples, the moving beam automatic stop;

17, overload protection: when the load exceeds the maximum value of the 3-5%, automatic shutdown;

Automatic and manual test results of the two models to automatically form a report, so that the data analysis process is simple.

Five, the main configuration

1, 20kN host 1;

3, mortar stretching with 5 groups

4, insulation material special compression with 1 sets of

5, thermal insulation material special drawing with 5 groups

6, heat preservation material forming frame 2 sets

7, 1 sets of the model

8, anti folding with 1 sets

9, ESP plate tension with 1 sets of

10, Taiwan East yuan AC servo motor and system;

11, high precision load sensor;

12, Lenovo brand computers;

13, color inkjet printer;

14, the use of manual, certificate, packing list, software CD
