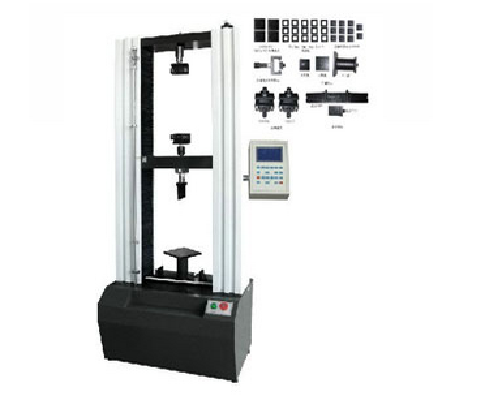

Digital thermal insulation material testing machine

Digital thermal insulation material testing machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: QINGDAO
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2003-10-23
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  JINAN
  • Brand Name:  siernuo
  • Model Number:  006

First, the main use:

BWS-20 type liquid crystal display insulation material testing machine is designed for composite insulation mortar system, polystyrene board exterior wall insulation system, rigid polyurethane foam composite board exterior wall insulation system and other external wall insulation system and roof insulation materials of various physical and chemical performance test research.

Two, this machine applicable standard:

JC/T992-2006 "expansion polyethylene adhesive for wall insulation"

JC/T993-2006 "exterior insulation mortar" with the expansion of polyethylene plate

JC/T547-2005 "ceramic tile adhesive"

JC149-2003 "expansion of polystyrene board thin plastering exterior insulation system"

JC890-2001 "autoclaved aerated concrete with mortar and plaster mortar"

JC/T907-2002 "concrete interface treatment agent"

"JG158-2004 powder polystyrene particles exterior insulation system"

JG/T3049-1998 "putty for interior"

JG/T229-2007 "exterior insulation waterproof flexible putty"

JC/T984-2005 "polymer cement waterproof mortar"

DBJ01-38-2002 "external wall thermal insulation construction technical specification for polymer cement mortar adhesive"

DBJ/T01-50-2002 "technical specification for exterior wall insulation construction of flexible waterproof putty"

Three, the main technical indicators:

1, the maximum test force: 20kN

2, measuring range: 100% - 2% of the maximum test force

3, testing machine accuracy level: 1

4, the test force accuracy: better than the value of 1%

5, displacement measurement: the resolution is 0.01mm

6, deformation accuracy: better than 1%

7, speed range: 1-300mm/min

8, the test space: 600mm

9, host form: portal frame structure

10, host size: 660 x 420 x 1700mm

11, weight: about 450Kg

12, working environment: room temperature to 45 degrees, humidity 20% ~ 80%

Four, the main configuration

1, 20kN host 1;

3, mortar stretching with 5 groups

4, insulation material special compression with 1 sets of

5, thermal insulation material special drawing with 5 groups

6, heat preservation material forming frame 2 sets

7, 1 sets of the model

8, anti folding with 1 sets

9, ESP plate tension with 1 sets of

10, Taiwan East yuan AC servo motor and system;

11, high precision load sensor;

12, Lenovo brand computers;

13, color inkjet printer;

14, the use of manual, certificate, packing list, software CD


  • Place of Origin:  JINAN
  • Brand Name:  siernuo
  • Model Number:  006
