- Place of Origin: jinan
- Brand Name: siernuo
- Model Number: xc-6

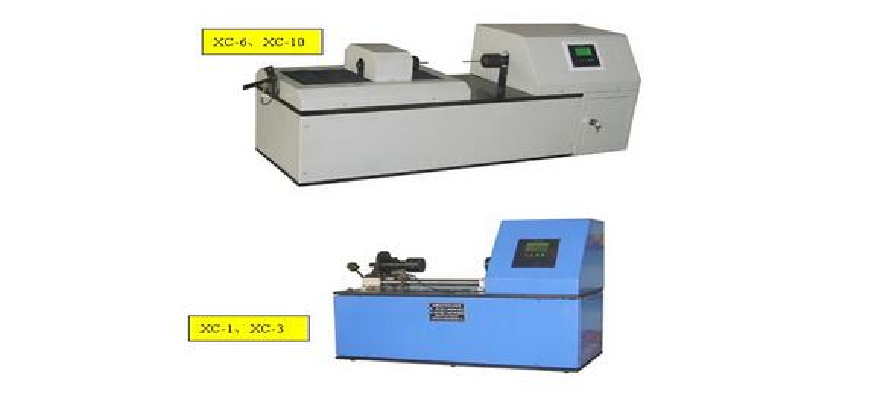

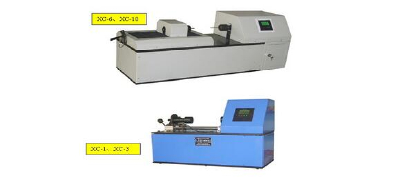

XC series wire torsion testing machine, a wire is a new type of digital factory developed the torsion testing machine, mainly used for torsion test with 0.1 ~ 10 with metal wire. Ability to determine the plastic deformation of metal wire in unidirectional or bidirectional torsion and its surface and internal defects. It provides a reliable measuring method for the production of wire rod and the use of wire.
Technical parameter:
Model
XC-1, XC-3
XC-6, XC-10
Operation mode
Auto loading
Auto loading
Display mode
LCD screen display
LCD screen display
Parameters:
1, can clamp the diameter of metal wire
0.1mm-1mm, 1mm-3mm
1mm-6mm, 1mm-10mm
Two, 2 plus head between the standard distance
250mm, 300mm
500mm, 500mm
3, twisting speed
60; 90; 120; 180; 300 rev / min
30; 60; 90; 120 rev / min
4, speed error
< 10%
< 10%
5, the hardness of the jaw (HRC)
55 ~ 65
55 ~ 65
6, the size of the test machine
500 x 300 x 980 mm
530mm "320mm" 1300mm
7, the weight of the test machine
100KG
160KG
8, power supply
220V AC 10% 50HZ
220V AC 10% 50HZ
9, noise
< 70 dB (A)
< 70 dB (A)
10, assembly quality
Meet the national standard GB/T2611
Meet the national standard GB/T2611
11, packaging
In accordance with the Ministry of machinery standard JB/T 614
In accordance with the Ministry of machinery standard JB/T 614
